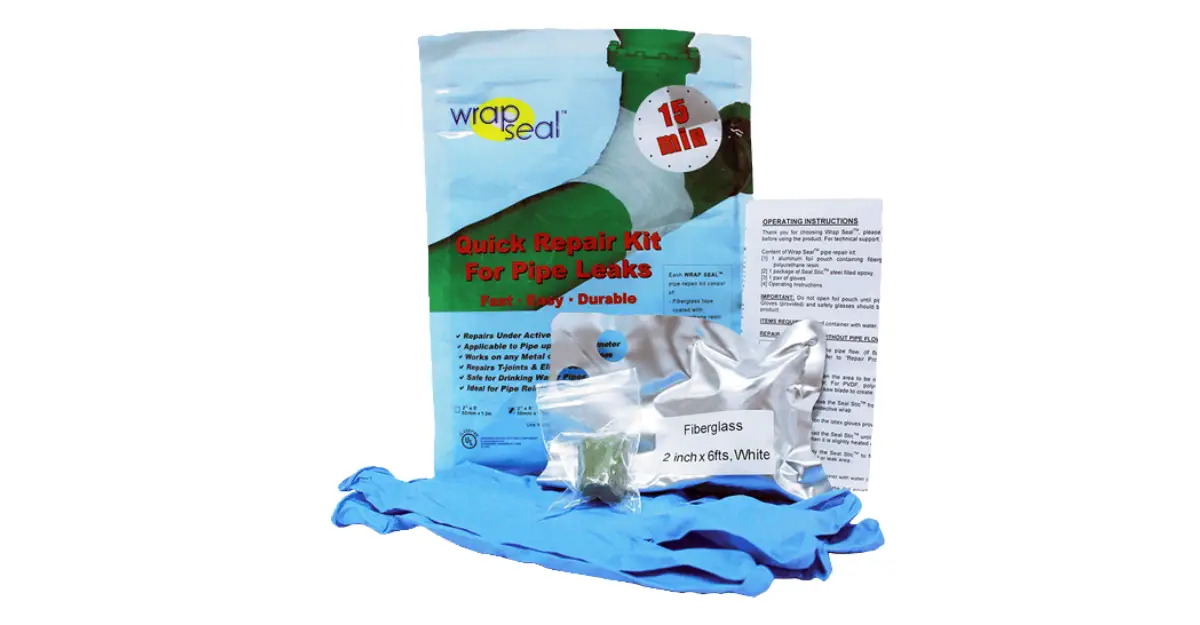

Pipe line leak repair kit
![1433-Pipe-Repair-Kit-Wrap-Seal-Kit1-removebg-preview](https://vsi-intl.com/wp-content/uploads/2022/05/1433-Pipe-Repair-Kit-Wrap-Seal-Kit1-removebg-preview.png)
Inquire Now
WRAP SEAL QUICK REPAIR KIT FOR PIPE LEAKS FEATURES:
- Repairs leak in 30 minutes
- Applicable to pipes up to 18″ (457 mm) diameter
- Applicable on any metal or non-metal pipes
- Repairs T-joint, elbow joint, valve thread, valve body
- Withstand pressure up to 400 psi (28 kg/cm2)
- Withstand temperature up to 200 °C (392 °F)
- Safe for drinking water and resistant to most chemicals
- Reinforce and strengthen pipe after repair
- Permanent repair and extend service life of pipes
APPLICABLE MATERIAL:
- Steel
- Copper
- Aluminium
- Galvanized steel
- PVC
- CPVC
- Stainless steel
- Polyethylene
- Polypropylene
- Cast-iron
- Concrete
- FRP/GRE
CHEMICAL RESISTANCE:
- Oil
- Water (drinking water, wastewater, steam)
- Solvents (acetone, toluene, MEK, ethyl alcohol)
- Mild acids (hydrochloric acid, sulfuric acid) and alkalis
- Chemical (ethylene glycol, xylenes, ammonia)
- Hydrocarbons
- Bases
- Slurries
- Fuels (petroleum, diesels, gasoline)
- Gases (LNG, LPG)
- Organic salts
WORKING TIME (FIBERGLASS TAPE):
-
1 minute at 30 °C (86 °F)
CURING TIME:
- 30 minutes at 30 °C (86 °F)
- Heat may be applied to decrease curing time
- Unopened foil pouch may be immerse in cold water prior to repair to add working and curing time.
APPLICATION:
- Pipe repairs
- Offline repairs
- Sealing joints
- Hazardous material spill control
- Reinforce thinning walls
- Abrasion protection
- Structural reinforcement
- Repairs in hard to reach areas
- Underwater repairs
OPERATING TEMPERATURE:
- Continuous – From -29 °C (-20 °F) up to 200 °C (392 °F)
- Intermittent – From 200 °C (392 °F) up to 320 °C (570 °F)
OPERATING PRESSURE:
- Recommended for pressure up to 400 psi (28 kg/cm2)
- (Results vary depending on pipe size, type of pipe, hole size, pipe content and method of application)
APPLICABLE INDUSTRIES:
![](https://vsi.itartpro.com/wp-content/uploads/2022/05/appli-1.jpg)
Building & Facilities
![](https://vsi.itartpro.com/wp-content/uploads/2022/05/appli-2.jpg)
Electronics
![](https://vsi.itartpro.com/wp-content/uploads/2022/05/appli-3.jpg)
Industrial Processing
![](https://vsi.itartpro.com/wp-content/uploads/2022/05/appli-4.jpg)
Irrigation
![](https://vsi.itartpro.com/wp-content/uploads/2022/05/appli-5.jpg)
Oil & Gas
![](https://vsi.itartpro.com/wp-content/uploads/2022/05/appli-6.jpg)
Chemical
![](https://vsi.itartpro.com/wp-content/uploads/2022/05/appli-7.jpg)
Manufacturing Plants
![](https://vsi.itartpro.com/wp-content/uploads/2022/05/appli-8.jpg)
Marine
![](https://vsi.itartpro.com/wp-content/uploads/2022/05/appli-9.jpg)
Military
![](https://vsi.itartpro.com/wp-content/uploads/2022/05/appli-10.jpg)
Offshore
![](https://vsi.itartpro.com/wp-content/uploads/2022/05/appli-11.jpg)
Food Processing
![](https://vsi.itartpro.com/wp-content/uploads/2022/05/appli-12.jpg)
Petrochemical
![](https://vsi.itartpro.com/wp-content/uploads/2022/05/appli-13.jpg)
Pharmaceutical
![](https://vsi.itartpro.com/wp-content/uploads/2022/05/appli-14.jpg)
Power Generation
![](https://vsi.itartpro.com/wp-content/uploads/2022/05/appli-15.jpg)
Pulp & Paper
![](https://vsi.itartpro.com/wp-content/uploads/2022/05/appli-16.jpg)
Wastewater
![](https://vsi.itartpro.com/wp-content/uploads/2022/05/appli-17.jpg)
Water Distribution
![](https://vsi.itartpro.com/wp-content/uploads/2022/05/appli-1.jpg)
Building & Facilities

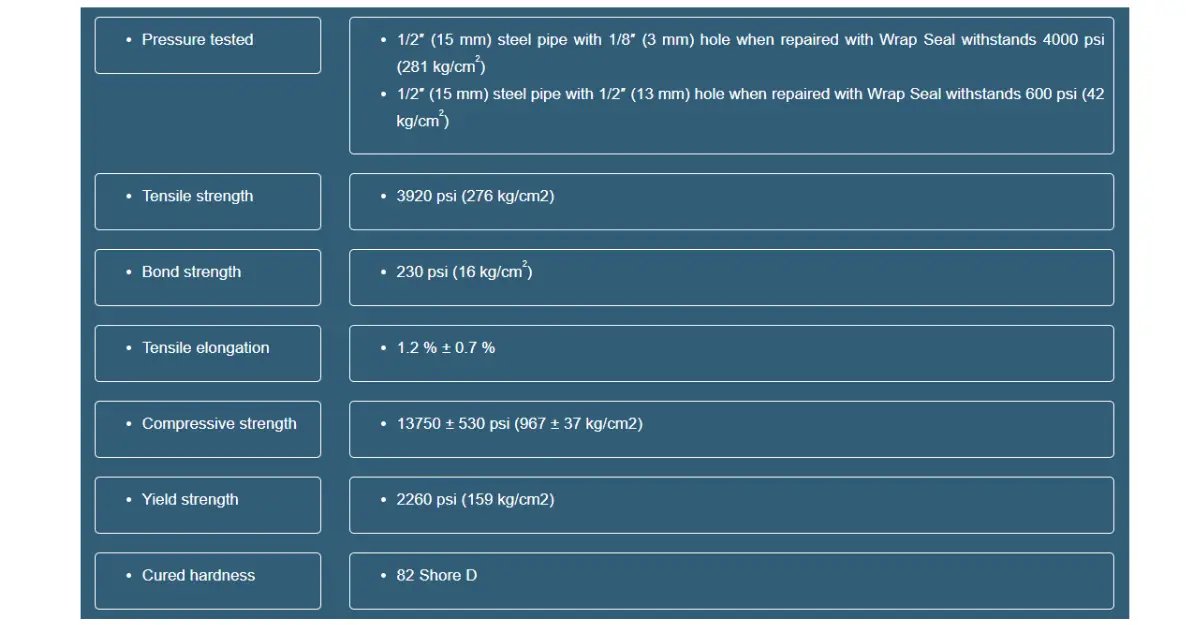

TECHNICAL DATA:
- Pressure tested
- 1/2″ (15 mm) steel pipe with 1/8″ (3 mm) hole when repaired with Wrap Seal withstands 4000 psi (281 kg/cm2)
- 1/2″ (15 mm) steel pipe with 1/2″ (13 mm) hole when repaired with Wrap Seal withstands 600 psi (42 kg/cm2)
- Tensile strength
- 3920 psi (276 kg/cm2)
- Bond strength
- 230 psi (16 kg/cm2)
- Tensile elongation
- 1.2 % ± 0.7 %
- Compressive strength
- 13750 ± 530 psi (967 ± 37 kg/cm2)
- Yield strength
- 2260 psi (159 kg/cm2)
- Cured hardness
- 82 Shore D

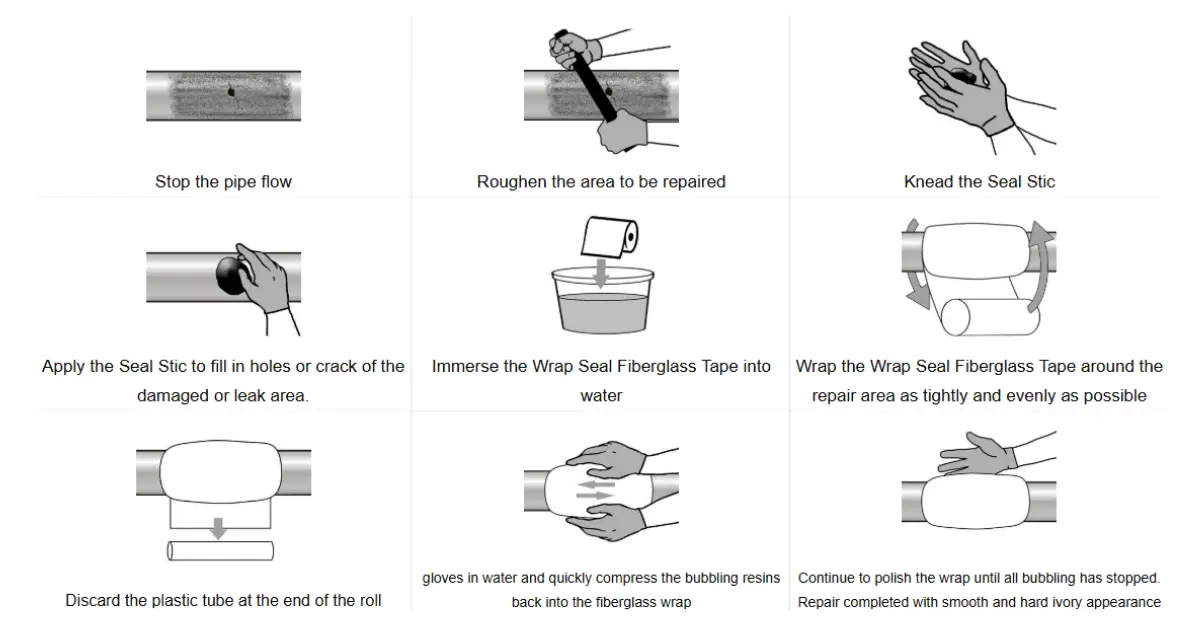

WRAP SEAL OFFLINE LEAK REPAIR PROCEDURE:
![](https://vsi-intl.com/wp-content/uploads/2022/05/Leak-Repair-Pro-1-300x300.jpg)
![](https://vsi-intl.com/wp-content/uploads/2022/05/Leak-Repair-Pro-2-300x300.jpg)
![](https://vsi-intl.com/wp-content/uploads/2022/05/Leak-Repair-Pro-3-300x300.jpg)
![](https://vsi-intl.com/wp-content/uploads/2022/05/Leak-Repair-Pro-4-300x300.jpg)
![](https://vsi-intl.com/wp-content/uploads/2022/05/Leak-Repair-Pro-5-300x300.jpg)
![](https://vsi-intl.com/wp-content/uploads/2022/05/Leak-Repair-Pro-6-300x300.jpg)
![](https://vsi-intl.com/wp-content/uploads/2022/05/Leak-Repair-Pro-7-300x300.jpg)
![](https://vsi-intl.com/wp-content/uploads/2022/05/Leak-Repair-Pro-8-300x300.jpg)
![](https://vsi-intl.com/wp-content/uploads/2022/05/Leak-Repair-Pro-9-300x300.jpg)
